Machine Vise
Max. Opening Precision Angle Lock Vise.
Max. Jaws Opening:
LVA-160:335mm
LVA-200:360mm
LVA machine vise with big opening suited to clamping large workpiece for machining.
Please select which you want to ask the following product specifications：

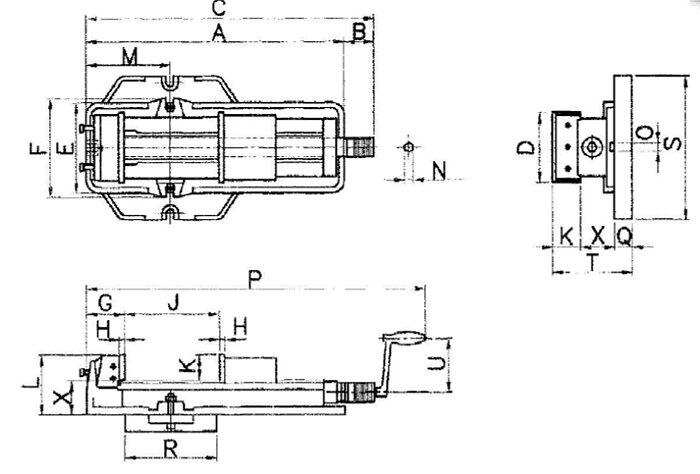

Unit/mm
| MODEL | A | B | C | D | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|---|
| LVA-160 | 600 | 66 | 666 | 160 | 210 | 240 | 100 | 15 | 0~335 | 58 |
| LVA-200 | 700 | 66 | 766 | 00 | 240 | 280 | 150 | 18 | 0~360 | 63 |
Unit/mm
| MODEL | L | M | N | O | P | Q | R | S | T | U | X |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LVA-160 | 140 | 190 | 14 | 18 | 689 | 38 | 320 | 340 | 178 | 30 | 82 |
| LVA-200 | 163 | 65 | 19 | 18 | 780 | 46 | 365 | 400 | 205 | 230 | 100 |
Max. Jaws Opening:
LVA-160:335mm
LVA-200:360mm
